TS500 Barbeque Smoker Trailer w/ Warmer & Chicken Pit

TS500 Barbeque Smoker Trailer w/ Warmer & Chicken Pit

$11,400.00

The TS500 Tank Smoker Trailer is a beast, and a handsome one at that! It’s built out of a 500 gallon tank and boasts nearly 46 square feet of cooking area—that’s enough space for 60 racks of ribs lying flat!

The spacious warming box will hold six full size restaurant pans. Along with all of the other features standard on the TS series trailers, the TS500 BBQ smoker is ready to face the hungry crowds.

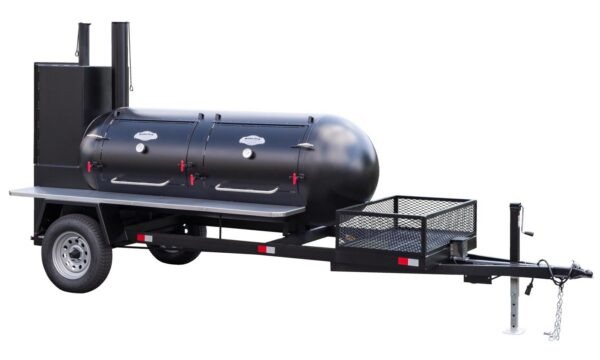

This trailer comes standard on a heavy-duty single axle chassis. It’s shown here with the optional double axle, trim package, stainless steel work-shelves, mounted chicken cooker with stainless steel lid, and spare tire.



TS500 Barbeque Smoker Trailer Specs

– Reverse flow draft

– Wood box

– Positive-lock latches on all doors

– Grate in firebox with slide-out ash pan

– Drain with ball valve for draining the tank

– Stainless steel handles

– Stay cool handles on slide vents, firebox door, and warming box door

– 2 exterior work shelves

– Warming box with 3 shelves

– Stainless steel calibratable thermometer on smoker and warming box doors

– Heat baffles on firebox protect the tires from excessive heat.

– Cooking grates are made of rust-free food-grade T304 stainless steel rod and easy to clean.

– Built in water pan helps keep your meat moist when water smoking with apple juice or other liquid.

– Tank is made of 3/16” plate steel and firebox of 1/4” plate steel and painted with black heat-resistant paint in an attractive matte finish.

– 2 exterior shelves

– 2 doors on each side of smoker

– Trailer is built on a tubular frame and features a 2” ball hitch and safety chains, heavy-duty wheel jack, rubber torsion axle, road-worthy tires, and DOT-compliant flush-mount LED lights, reflector strips, and VIN plate.

– We are a licensed trailer manufacturer and can provide a certificate of origin the trailer.





Call to Order





Add to compare
Compare
SKU: TS500-SMOKER Categories: ,

Description

The TS500 Tank Smoker Trailer is a beast, and a handsome one at that! It’s built out of a 500 gallon tank and boasts nearly 46 square feet of cooking area—that’s enough space for 60 racks of ribs lying flat!

The spacious warming box will hold six full size restaurant pans. Along with all of the other features standard on the TS series trailers, the TS500 BBQ smoker is ready to face the hungry crowds.

This trailer comes standard on a heavy-duty single axle chassis. It’s shown here with the optional double axle, trim package, stainless steel work-shelves, mounted chicken cooker with stainless steel lid, and spare tire.



TS500 Barbeque Smoker Trailer Specs

– Reverse flow draft

– Wood box

– Positive-lock latches on all doors

– Grate in firebox with slide-out ash pan

– Drain with ball valve for draining the tank

– Stainless steel handles

– Stay cool handles on slide vents, firebox door, and warming box door

– 2 exterior work shelves

– Warming box with 3 shelves

– Stainless steel calibratable thermometer on smoker and warming box doors

– Heat baffles on firebox protect the tires from excessive heat.

– Cooking grates are made of rust-free food-grade T304 stainless steel rod and easy to clean.

– Built in water pan helps keep your meat moist when water smoking with apple juice or other liquid.

– Tank is made of 3/16” plate steel and firebox of 1/4” plate steel and painted with black heat-resistant paint in an attractive matte finish.

– 2 exterior shelves

– 2 doors on each side of smoker

– Trailer is built on a tubular frame and features a 2” ball hitch and safety chains, heavy-duty wheel jack, rubber torsion axle, road-worthy tires, and DOT-compliant flush-mount LED lights, reflector strips, and VIN plate.

– We are a licensed trailer manufacturer and can provide a certificate of origin the trailer.



Overall Dimensions 92”h x 202”l x 72”w
Cooking Area 45.86 sq. ft. (6,604 sq. in.)
Grate Dimensions 2 – 30” x 33”, 4 – 34” x 34”
Space Above Top Grate 6.5”
Space Between Grates 5.75”
Grate Style Wire Grid With 1/2” Spacing
Tank Dimensions 37” x 108” (500-gallon)
Metal Thickness on Tank 0.25”
Fire Box Dimensions 30.5” Cube (Inside: 30” x 30” x 18”*)
Metal Thickness on Fire Box 0.25”
Warming Box Dimensions 21” x 27.5” (Inside)
Warming Box Grate Dimensions 21” x 28”
Space Between Grates in Warmer 8.5”
Axle Rating 3,500 lbs.
Net Weight 2,800 lbs.
Shipping Weight 2,800 lbs.
Capacity of Pork Butts 64-65
Capacity of Baby Back Ribs 50-60
Capacity of Spare Ribs 35-40
Capacity of Whole Briskets 46-50
Capacity of Whole Chickens 100-105
Capacity of Whole Pigs 4 x 40 lbs.
